System Analysis

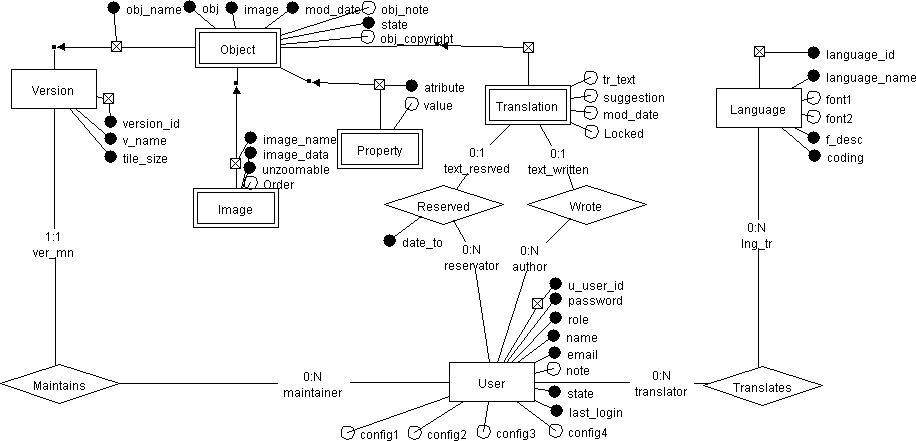

Database Schema

(Chen Notation)

SQL Code

Download
View it because it contains exact naming (which differes from schema little bit due to prefixes and so on).

Database Description

  • Expected cardinalities of tables in project life time:
    Version: units
    Objects: units of thousands
    Property: tens of thousands
    Translation: tens of thousands
    Language: tens
    User: tens to hundreds
  • Access conflict resolution:
    Resolution of conflicts is left on the database engine. From the nature of the problem flows, that conflicts should be rare, because in most cases users want to avoid of parallel work on same data object. Some objects can be modified by one user only, so conflict should not occur. If some user intentionally causes a conflict database engine should resolve it by serialization of the access.
  • Database access and consistency:
    Users should not have a direct access to the database, all operations should be carried out by SimuTranslator systems. Modules should allow only such operations, which would lead to consistent state of the database.
  • Accounts:
    SimuTranslator will log to database using accounts appropriate for given user type. Accounts for user types will have their rights restricted to necessary operations only. (download account descriptions) Access to the database will be only permitted from local machine, no scripts running on other machines should be able to connect to database.
  • Data dictionary:
    Data dictionary is described on data dictionary page.
